Indexing by free software

EBSP INDEXER
EBSP INDEXER
EBSP INDEXER

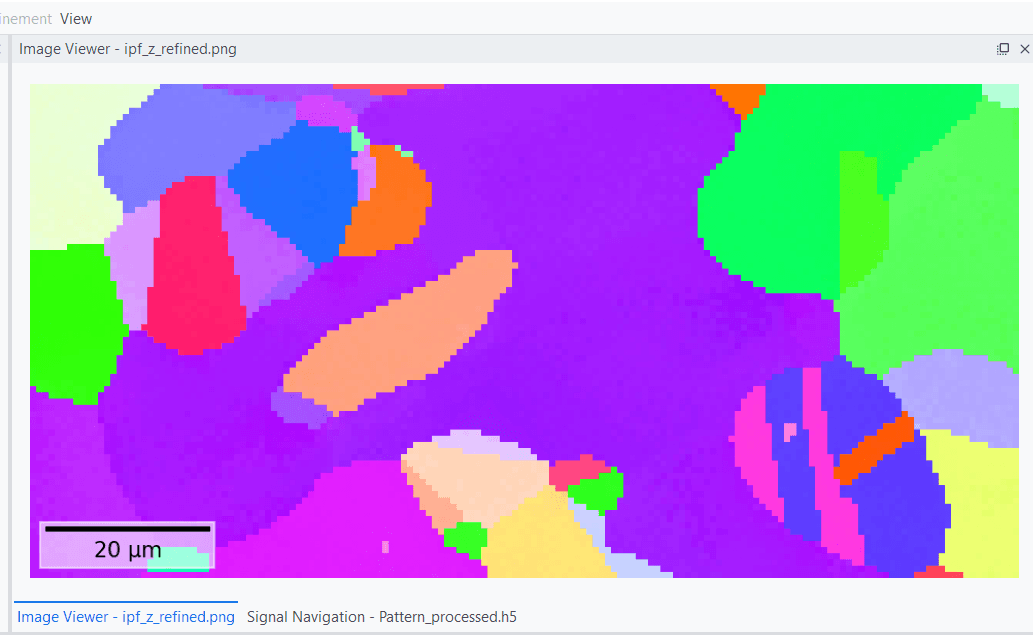

EBSP INDEXER IPF map DI

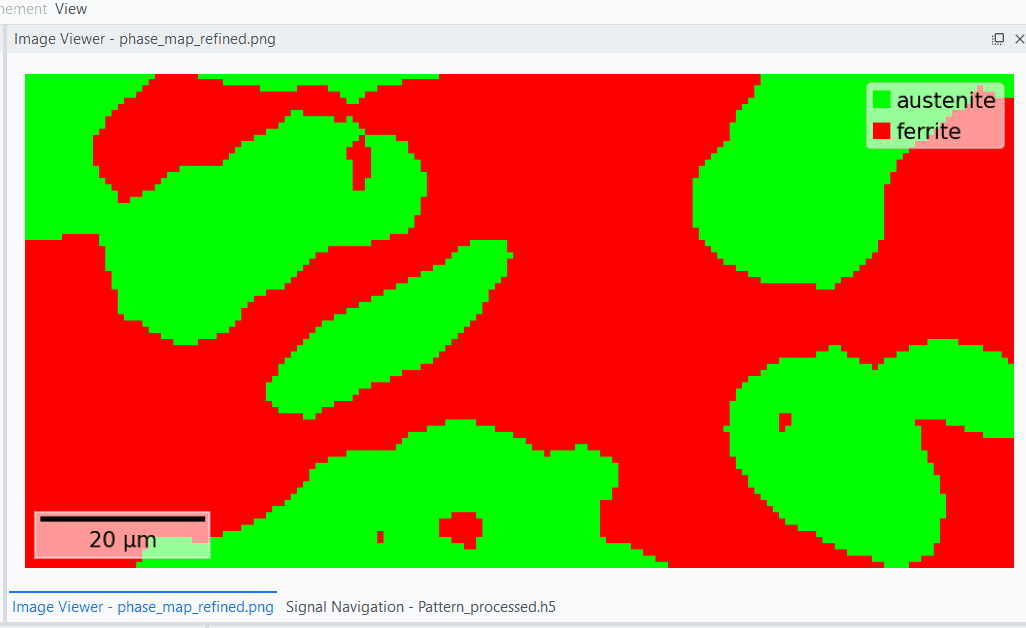

EBSP INDEXER Phase map DI

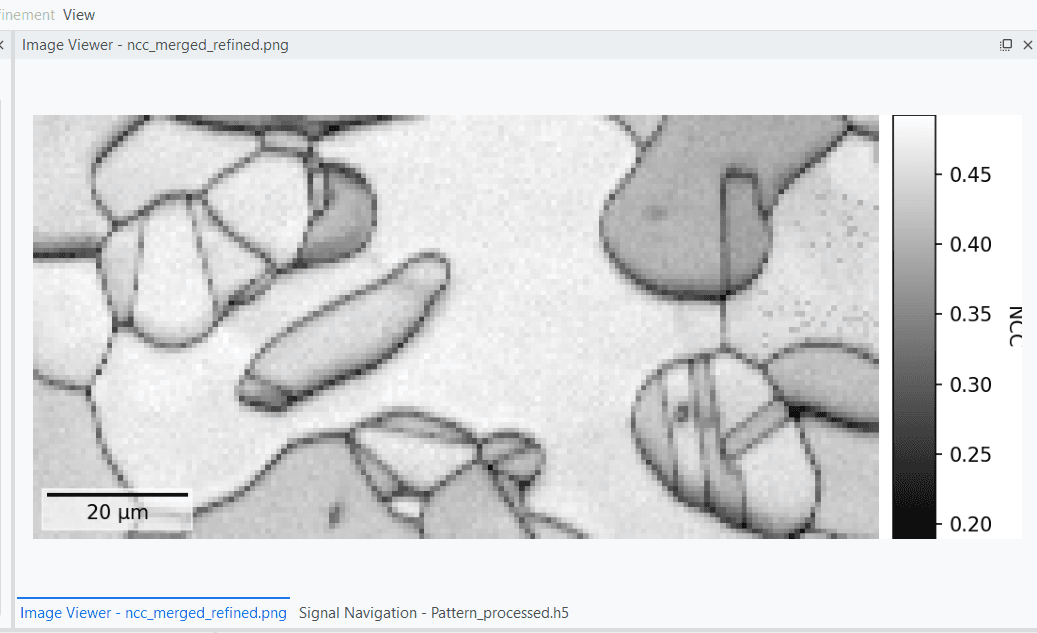

EBSP INDEXER NCC

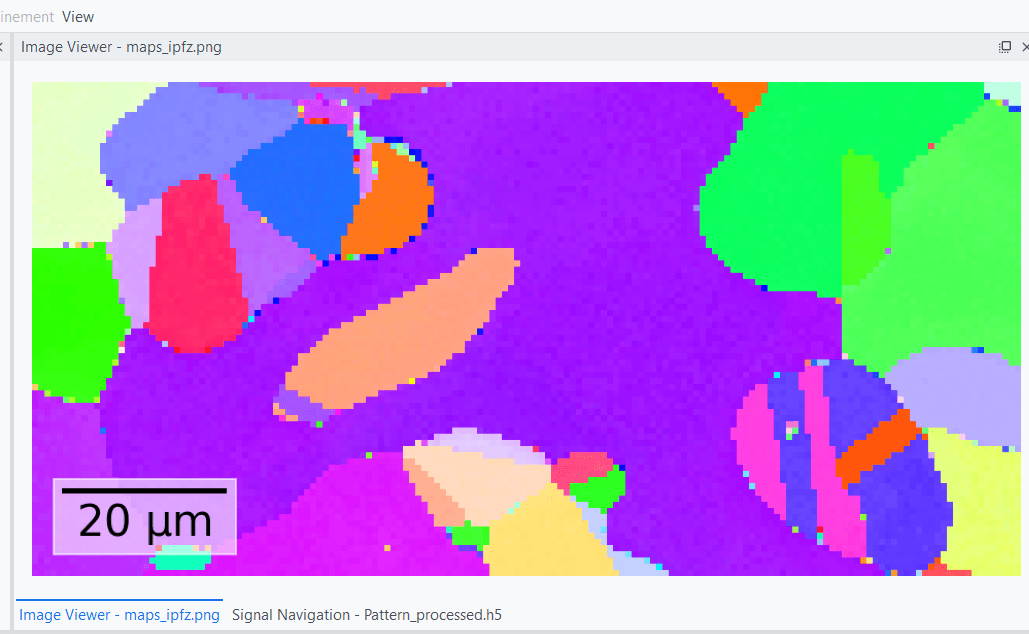

EBSP INDEXER IPF map HI

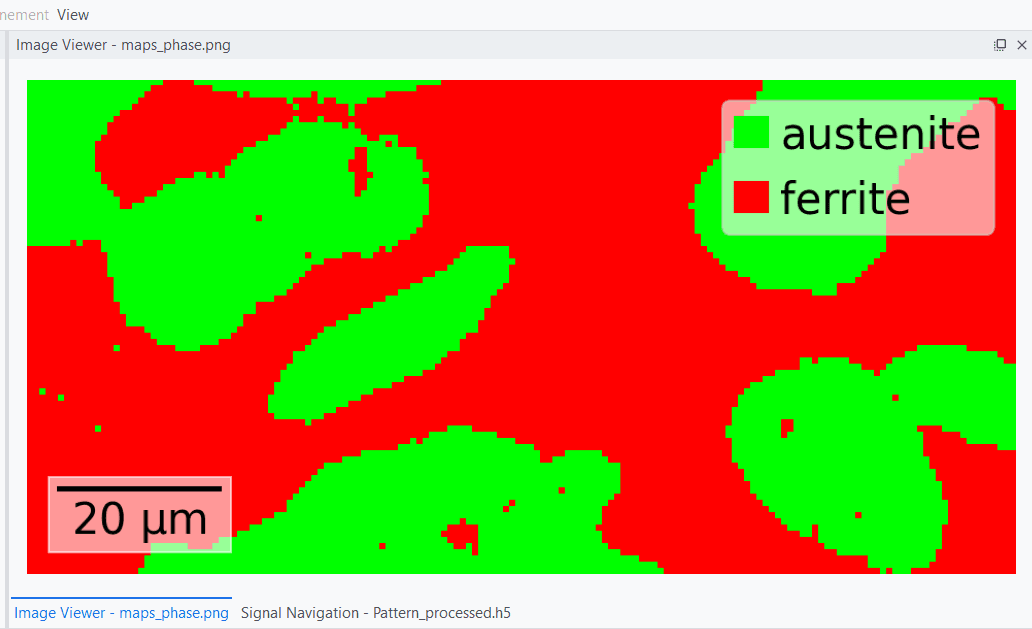

EBSP INDEXER Phase map HI

Summary:

  • New free EBSP indexer, Windows 10/11 and MacOS compatible
  • Compatible with datasets acquired on NORDIF EBSD systems
  • Hough indexing (HI) and Dictionary indexing (DI)
  • User-friendly, suitable for both students and scientists
  • IPF-, Phase-, IQ-, OS-, NCC-maps
  • Results as .ang or .h5 -files
Send inquiry

Details:

Electron Backscatter Patterns (EBSP) acquired on NORDIF EBSD systems can be indexed by the EBSP Indexer, a free indexing software which is compatible with Windows 10/11 and MacOS. This user-friendly EBSP Indexer is capable of both Hough- and Dictionary Indexing. Hough indexing (HI) is faster than Dictionary Indexing (DI). However, DI can handle noisy patterns, low resolution patterns and separate phases with the same crystal structure (e.g. two FCC phases). Several types of maps can be presented: Invers Pole Figure map, Phase map, Image Quality map, Orientation Similarity map, Normalized Cross Correlation map, Average Dot Product map etc. The results are present in .ang and .h5-files.
